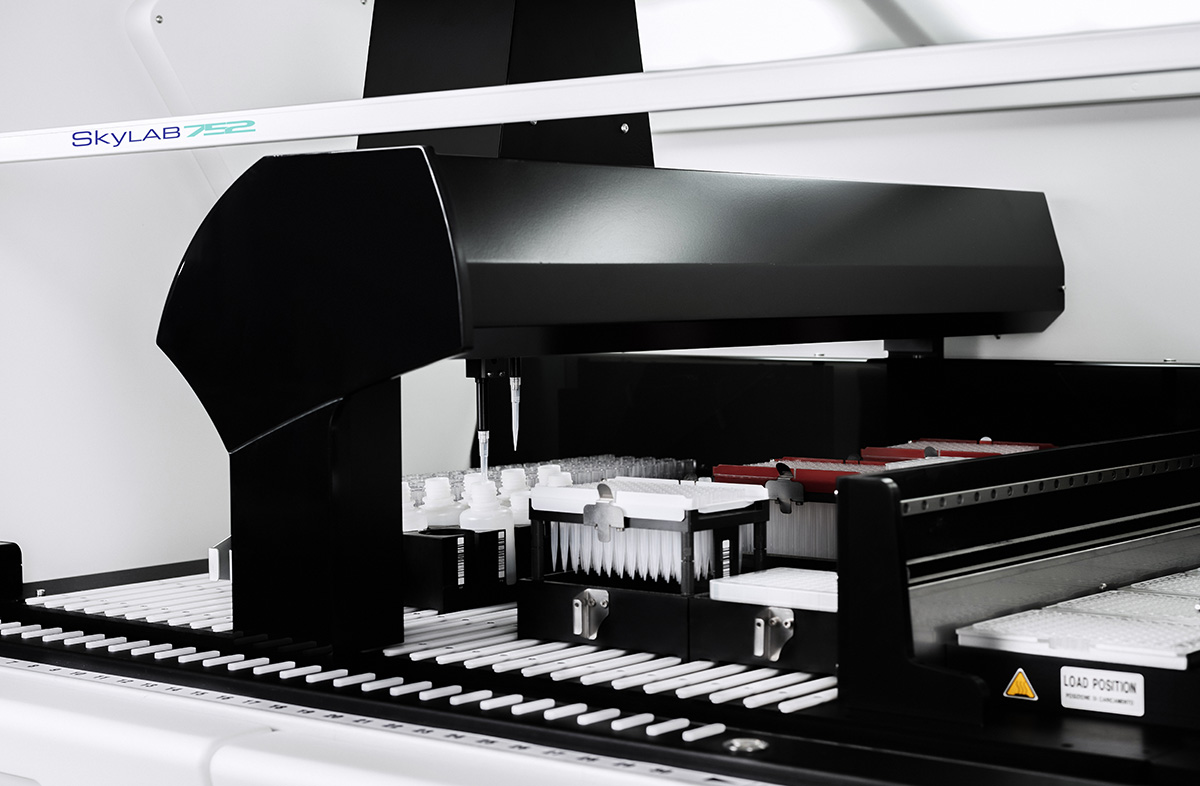

Skylab 752 è un sistema automatico ELISA-IFA che può processare fino a 616 campioni nella stessa lista di lavoro.
Uno strumento indispensabile per fare grosse routine di screening della popolazione per tutti quei test che servono alla ricerca degli anticorpi sviluppati a causa della risposta immunitaria contro un Virus, o per monitorare la crescita degli anticorpi a seguito di un vaccino.
Le tecnologie applicate sono formate da nuovi moduli di aspirazione e dispensazione, che alzano l’asticella della precisione utilizzando tips plastici e software di ultima generazione creati per guidare l’utente nella gestione dello strumento con la massima semplicità.

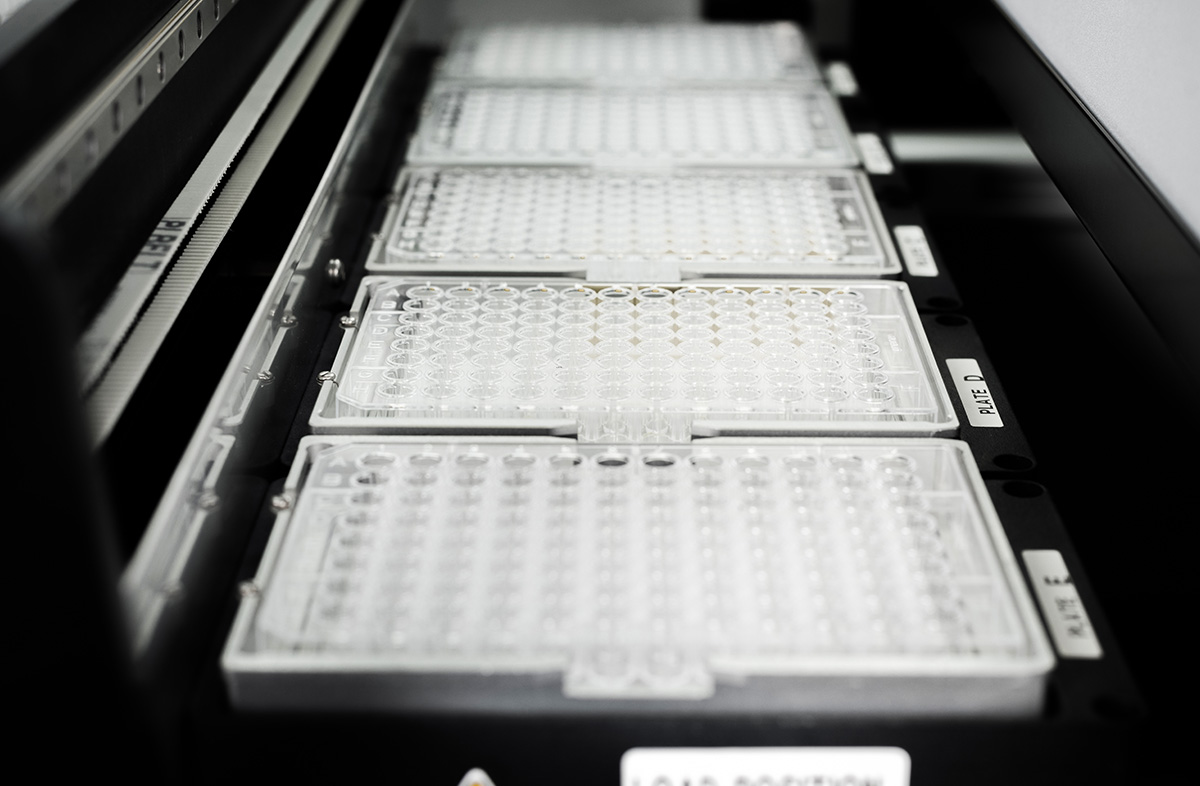

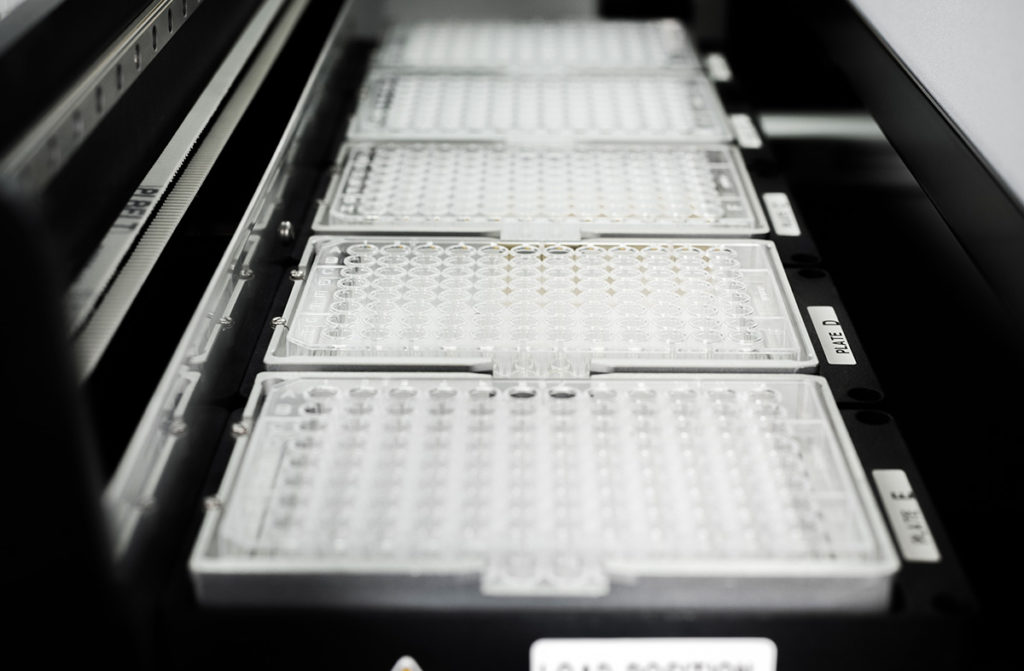

| Number of plates | Standard 5+2 |
| Number of IFA slides ** | Standard 28 (7 holders x 4) |

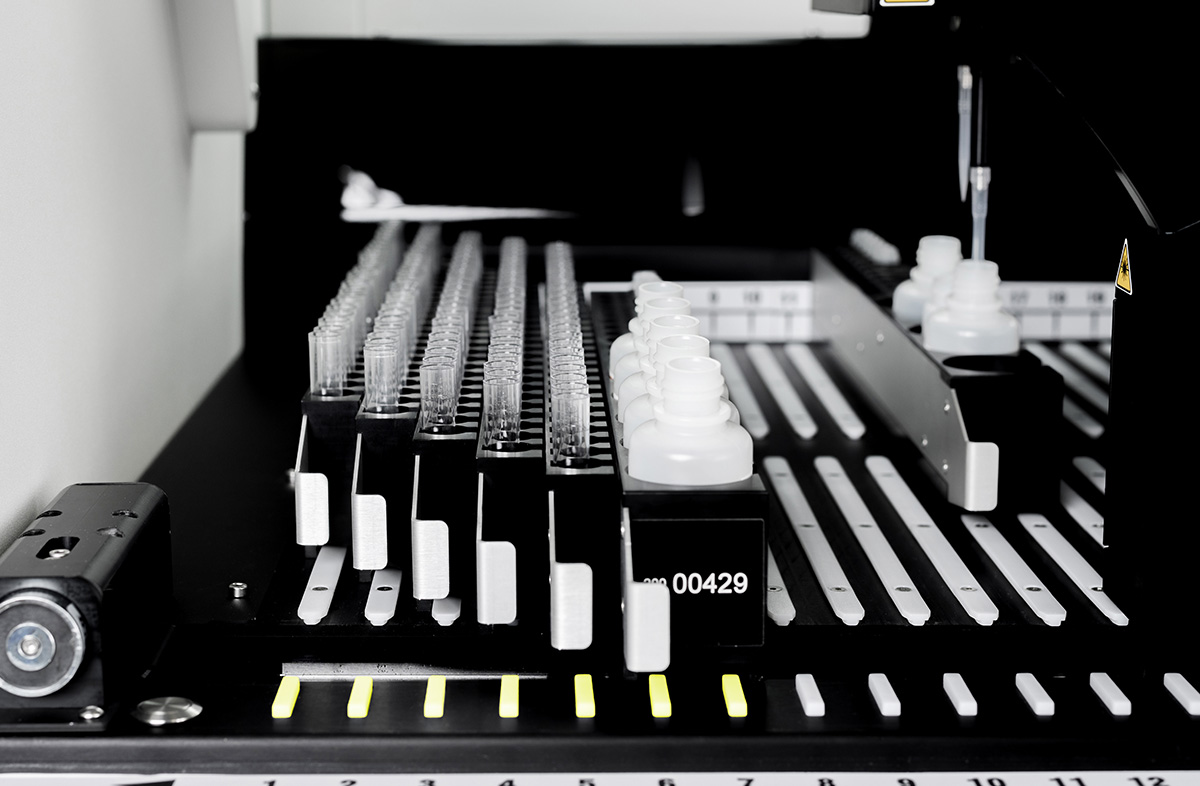

| Sample capacity | Up to 288 primary tubes against 2 tests. Up to 616 primary tubes against 1 test in sample and tips continuous loading mode |
| Continuous sample and tips loading | Yes |
| Sample tube size | Diameter: max 16 mm Height: max 100 mm |
| Number of reagents | From 5 to 40 |
| Number of controls | From 12 to 96 |
| Assays per plate | 2 (in case plates have same coating) |

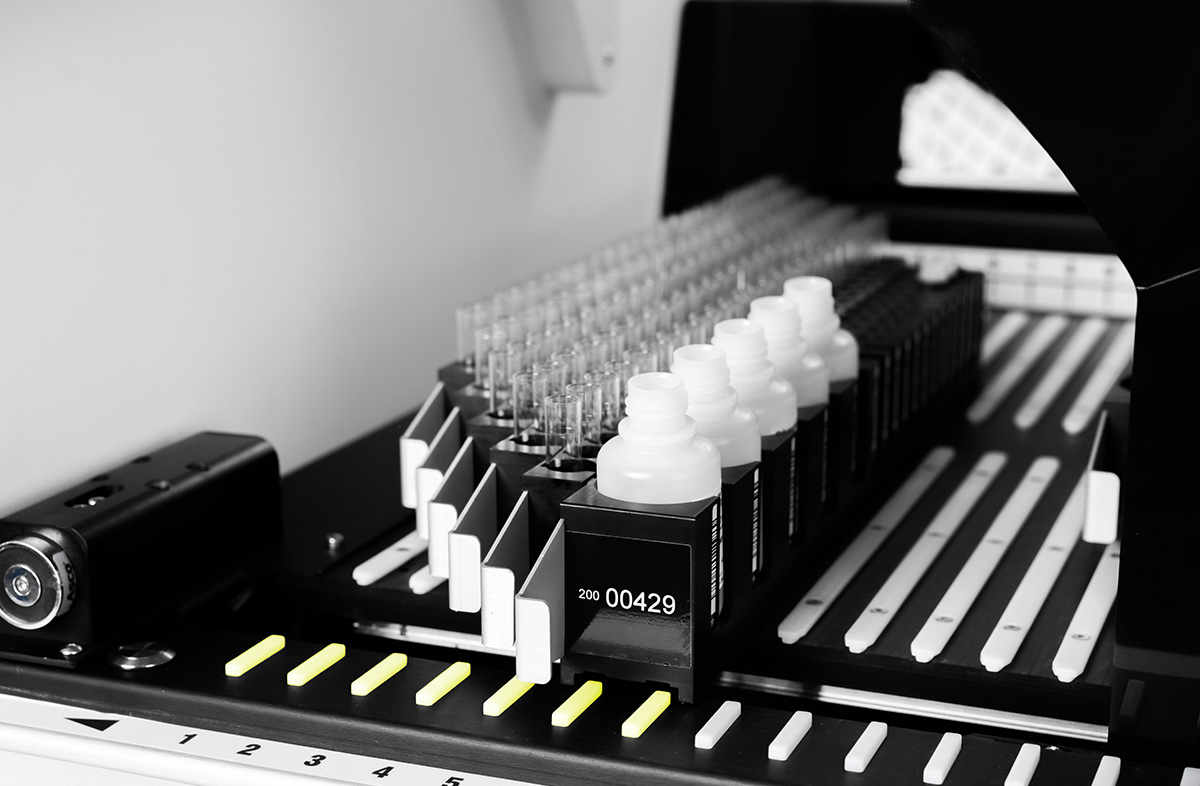

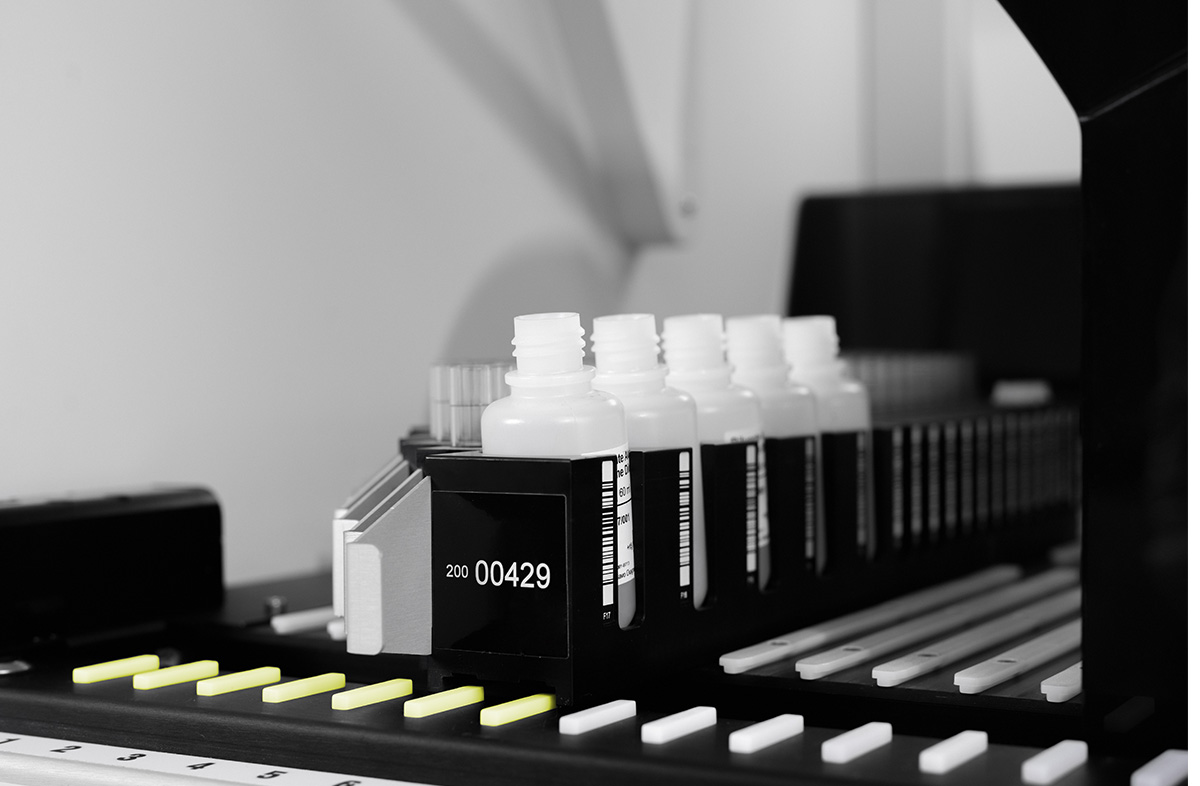

| Reagent fluid capacity | Up to 60 mL bottles |
| Self-test at start-up | Yes |
** Future features
| Number of incubators | Standard 5+2, with following configuration: 5 independent under plates on the working area and 1 under plate below the working area 1 shaker-incubator unit below the working area 1 to 3 optional extra shaker-incubator units below the working area |
| Temperature range | RT (+ 7°C) to + 50°C |
| Accuracy | ± 1°C |
| Temperature uniformity | ± 1°C |
| Shaking | Yes (optional up 4 plates) 200-1000 rpm |
| Number of pipettes | 2 independent channels using disposable tips for sample and reagents |
| Sample tip type | Standard disposable tips |
| Sample tip size | 200 -1000 μL |
| Sample pipetting volume | 1 – 200 μL (with large tips up to 1000 μL) |
| Estimated transfer time | < 9 seconds per sample |
| Time to dispense | < 14 minutes (for 96 samples with volume of 100 μL) |
| Precision | Reagents: ≤ 3% CV (10 Replicates) for any operating volume above 25 μL Samples: ≤ 3% CV (10 replicates) for any operating volume above 10 μL |
| Accuracy | Reagents: ± 3% CV (10 replicates) for any operating volume above 25 μL Samples: ± 3% CV (10 replicates) for any operating volume above 10 μL |
| Adding reagent to full 96 plate | From 3 to 7 minutes depending on reagent volume (50 to 200 μL) |
| Manifold configuration | 1 (8-way wash head) |
| Programmable volume | -50 – 2000 μL |
| Residual wash volume | < 3 μL per well in a flat bottom plate |

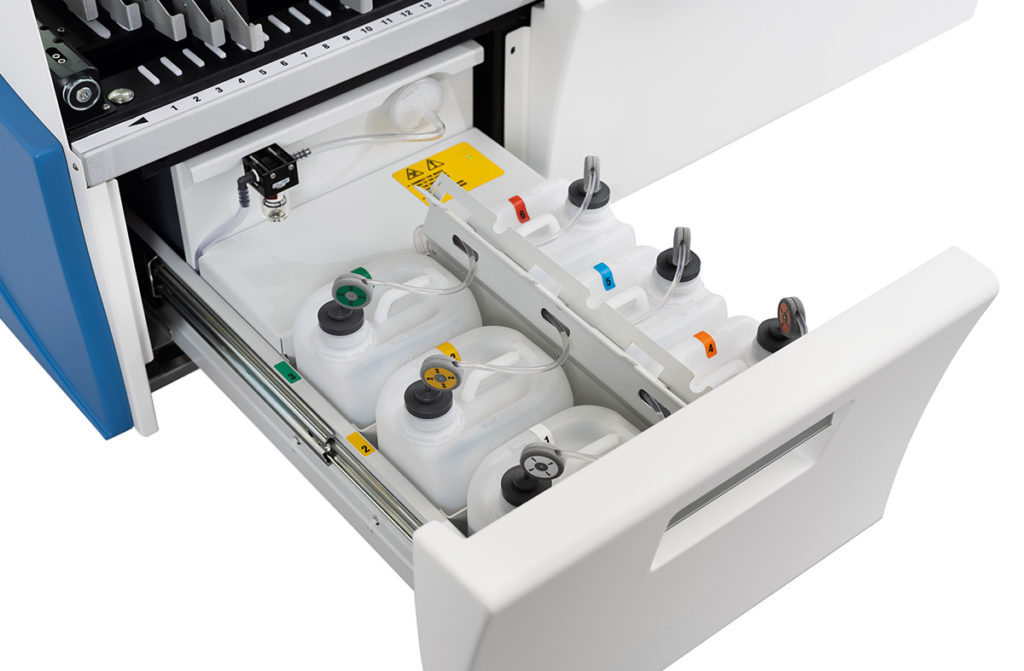

| Wash containers 6 tanks at 2 liters | 6 tanks at 2.0 L 5 washing buffer + 1 distilled water or washing buffer |
| Buffer level alarm | Yes (with continuous level sensing) |
| Waste container | 8 L with continuous level sensing |
| Dispense precision | ≤5% CV (with 300 pL H2O in 96 well) |
| Liquid level sensing | Gravimetric for all tanks and waste container |
| Photometric range | 0 – 3.3 OD |
| Spectral range | 400 nm to 700 nm |
| Filter slots | 8 |
| Precision | 0.01 SD (at 0.000 to 0.500 OD) ≤ 1% CV (at 0.501 to 2.000 OD) ≤ 1.5% CV (at 2.001 to 2.500 OD) ≤ 5:2.0% CV (at > 2.501 OD) |
| Accuracy | ±0.01 OD or 2.5% (at 0.000 to 3.300 OD) whichever is greater |
| Read time | 5 seconds, single wavelength 8 seconds, dual wavelength |
| Read time | < 5 seconds |
| Number of reagent tips | 96 |
| Reagent pipetting volume | Up to 1000 pL |
| Number of sample tips loaded | Up to 9 tip racks (864 in total). No tip number limits in continuous loading mode |
| Dilution Range | 1 part in 200 one stage dilution 1 part in 40000 two stages dilution |
| Direct in-plate predilution | Yes |
| Barcode reader for samples and resources identification | Yes, with capability of reading EAN/ UPC, Code 39, Interleave 2 of 5, Code 93 and Code 128 barcode formats |
| Size | Width 130cm, Depth 94cm, Height 98cm |
| Weight (net) | 220 kg |
